LCP 5PIN Female Micro USB Socket Connector For Tail Charging

Ask Lasest Price
Brand Name :	HuaYong
Model Number :	BSC-MN20-016
Certification :	CE/ ROHS /QC
Price :	$0.05 - $0.06 / Piece
Payment Terms :	L/C, T/T, MoneyGram
Supply Ability :	20000000PCS/Month
Delivery Time :	About 3-7days after receipt

Add to Cart

Product Details
Company Profile

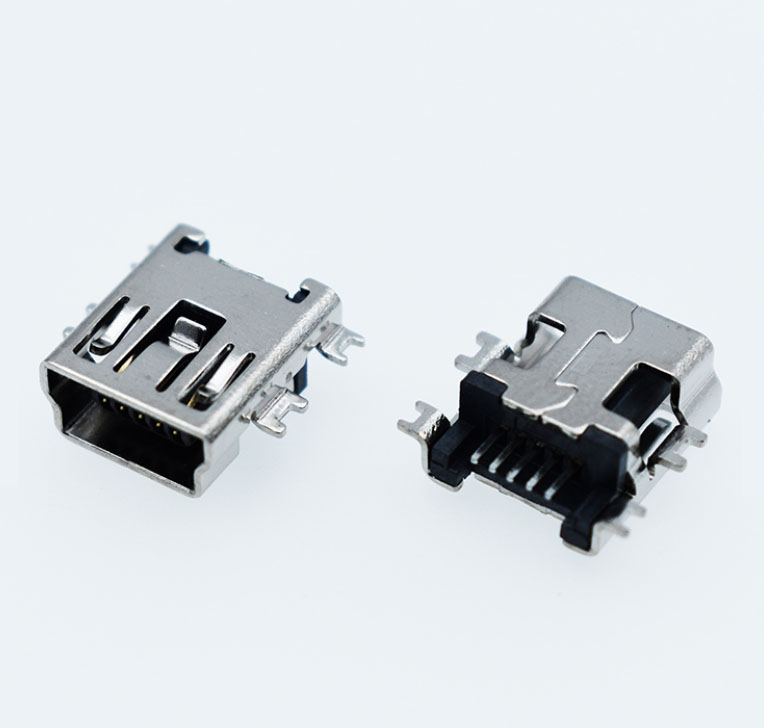

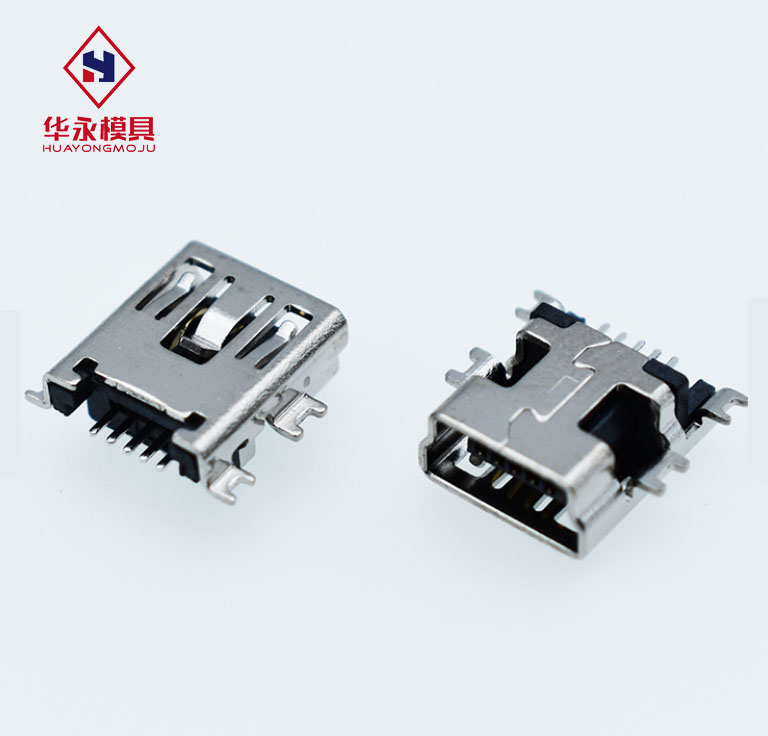

LCP 5PIN Female Micro USB Socket Connector For Tail Charging

MINI USB Connector 5PIN Female Socket Connector foot for Tail Charging Mobile Phone Data Interface

Quick Details

Model Number:BSC-MN20-016
Application:PCB
Place of Origin:Guangdong, China
Product name:MINI USB 5P Female connector
Color:Black
Connector type:Female Connector
Pin:5Pin
Plating:Stainless steel shell with nickel plating
Contact material:Gold-plated Copper Alloy
Rated Voltage:30V DC
Material:LCP
Current Rating:1.0A/contact terminal
Certificate:ROHS
Type:USB
Gender:female
Brand Name:HUAYONG

MINI USB Connector 5PIN Female Socket Connector foot for Tail Charging Mobile Phone Data Interface

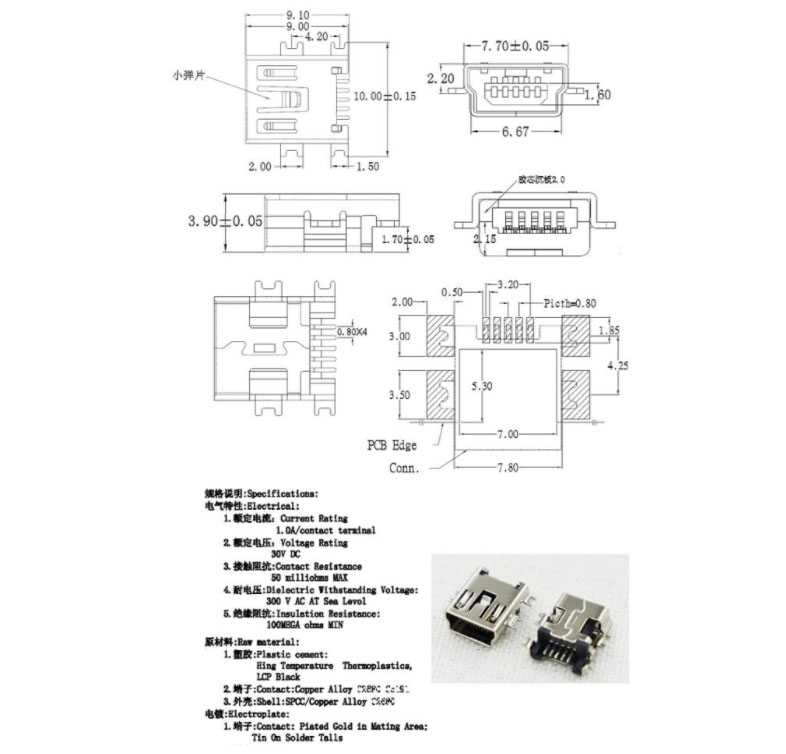

Specifications:

Electrical

1.Current Rating:1.0A/Contact terminal

2.Voltage Rating:30V DC

3.Contact Resistance:50 milliohms MAX

4.Dielectnic Withstanding Voltage: 300V AC Sea Levol

5.Insulation Resistance:100 MEGA ohms MIN

Mechanical

1.Connector Mate and Unmate Force:Mate force 3.0 kgf(MAX) Unmate force 0.7kgf(MIN)

2.Terminal Retenion:0.5kgf(MIN)

Material:

1.Housing: High Temperature UL 94V-0 LCP Black

2.Contact:Copper Alloy C2680

3.Shell:Copper Alloy C2680

Finish.

1.Contact:Plated Gold in Mating Area

Tin on Solder Tails

2.Shell:Nickel Plating
