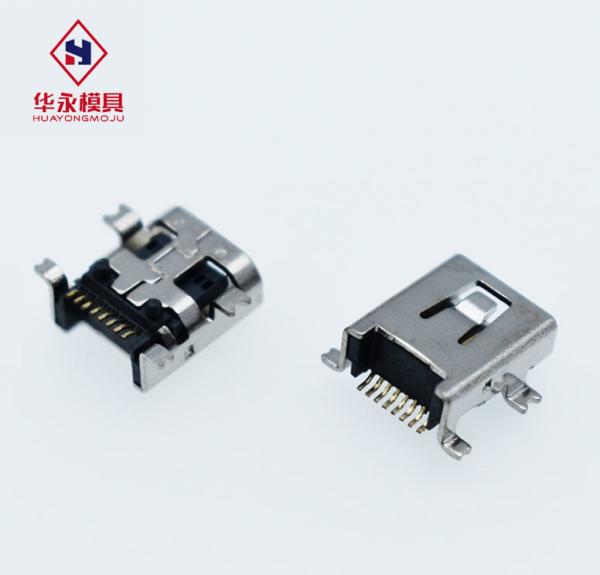

ROHS Approved Mid Mount MINI 8Pin Usb 2.0 Socket Connector

Ask Lasest Price
Brand Name :	HuaYong
Model Number :	BSC-MN20-018
Certification :	CE/ ROHS /QC
Price :	$0.05 - $0.06 / Piece
Payment Terms :	L/C, T/T, MoneyGram
Supply Ability :	20000000PCS/Month
Delivery Time :	About 3-7days after receipt

Add to Cart

Product Details
Company Profile

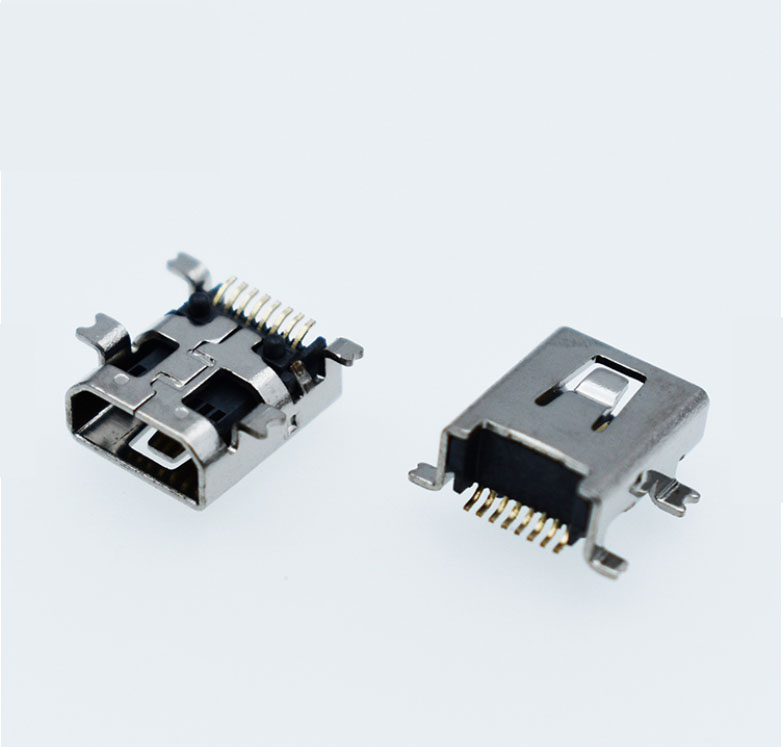

ROHS Approved Mid Mount MINI 8Pin Usb 2.0 Socket Connector

High quality Mid-Mount MINI USB 2.0 8Pin Female Charging Port Connector Made in China

Quick Details

Model Number:BSC-MN20-018
Application:PCB
Place of Origin:Guangdong, China
Product name:MINI USB 5P Female connector
Color:Black
Connector type:Female Connector
Pin:8Pin
Plating:Stainless steel shell with nickel plating
Contact material:Gold-plated Copper Alloy
Rated Voltage:30V DC
Material:LCP
Current Rating:1.0A/contact terminal
Certificate:ROHS
Type:USB
Gender:female
Brand Name:HUAYONG

High quality Mid-Mount MINI USB 2.0 8Pin Female Charging Port Connector Made in China

Specifications:

Electrical

1.Current Rating:1.0A/Contact terminal

2.Voltage Rating:30V DC

3.Contact Resistance:50 milliohms MAX

4.Dielectnic Withstanding Voltage: 300V AC Sea Levol

5.Insulation Resistance:100 MEGA ohms MIN

Mechanical

1.Connector Mate and Unmate Force:Mate force 3.0 kgf(MAX) Unmate force 0.7kgf(MIN)

2.Terminal Retenion:0.5kgf(MIN)

Material:

1.Housing: High Temperature UL 94V-0 LCP Black

2.Contact:Copper Alloy C2680

3.Shell:Copper Alloy C2680

Finish.

1.Contact:Plated Gold in Mating Area

Tin on Solder Tails

2.Shell:Nickel Plating

ABOUT HUAYONG

Dongguan Huayong Precision Mould Co., Ltd. was established in 2013. Our company is a professional manufacturer of precision molds and precision parts processing. The company has introduced advanced mold processing equipment and testing equipment from Japan, and has a professional team of technical personnel. Effective management ensures the quality of mold parts and professional services.
Since its establishment, the company has won the trust of customers with stable quality and professional technical services. Always put customer needs first, continue to improve, and work hard for better customers.

Our Services

1. More than 7 years experience in Connector industry, pls provide drawing or send sample to us, then we will send you our drawing or sample for you approval;

2. 100% tested before shipping out to guarantee the best quality;

3. OEM available

5. Fast delivery time, Best production capacity, Best price;

6. All your needed certificates we can provide;

7. ROHS compliant;

8. Small order are available.
