OEM DIP 180degree Female Usb Connector Pcb Mount Socket

Ask Lasest Price
Brand Name :	HuaYong
Model Number :	BSC-MN20-002
Certification :	CE/ ROHS /QC
Price :	$0.05 - $0.06 / Piece
Payment Terms :	L/C, T/T, MoneyGram
Supply Ability :	20000000PCS/Month
Delivery Time :	About 3-7days after receipt

Add to Cart

Product Details
Company Profile

OEM DIP 180degree Female Usb Connector Pcb Mount Socket

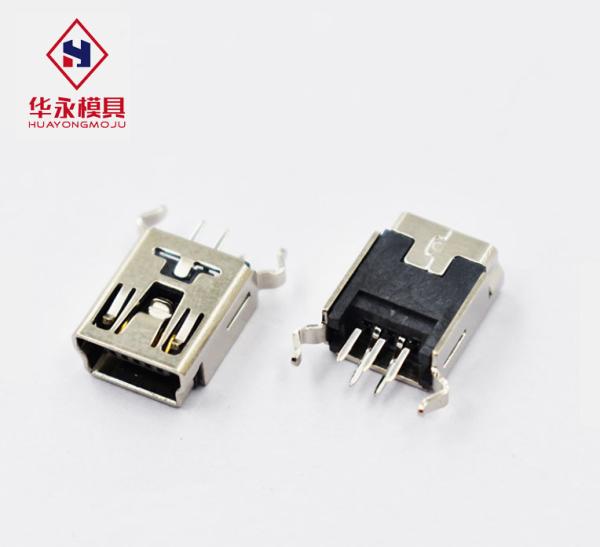

Vertical Mini USB 5pin Type B Female Socket Connector DIP 180degree PCB Socket Connector

Quick Details

Model Number:BSC-MN20-002
Application:PCB
Place of Origin:Guangdong, China
Product name:MINI USB 5P Female connector
Color:Black
Connector type:Female Connector
Pin:5Pin
Plating:Stainless steel shell with nickel plating
Contact material:Gold-plated Copper Alloy
Rated Voltage:30V DC
Material:LCP
Current Rating:1.0A/contact terminal
Certificate:ROHS
Type:USB
Gender:female
Brand Name:HUAYONG

Vertical Mini USB 5pin Type B Female Socket Connector DIP 180degree PCB Socket Connector

Specifications:

Electrical

1.Current Rating:1.0A/Contact terminal

2.Voltage Rating:30V DC

3.Contact Resistance:50 milliohms MAX

4.Dielectnic Withstanding Voltage: 300V AC Sea Levol

5.Insulation Resistance:100 MEGA ohms MIN

Mechanical

1.Connector Mate and Unmate Force:Mate force 3.0 kgf(MAX) Unmate force 0.7kgf(MIN)

2.Terminal Retenion:0.5kgf(MIN)

Material:

1.Housing: High Temperature UL 94V-0 LCP Black

2.Contact:Copper Alloy C2680

3.Shell:Copper Alloy C2680

Finish.

1.Contact:Plated Gold in Mating Area

Tin on Solder Tails

2.Shell:Nickel Plating
