Short PIP Panel Mount Micro Sd Card Socket For Wifi Router

Ask Lasest Price
Brand Name :	HuaYong
Model Number :	M617-2
Certification :	CE/ ROHS /QC
Price :	$0.12 - $0.20 / Piece
Payment Terms :	L/C, T/T, MoneyGram
Supply Ability :	20000000PCS/Month
Delivery Time :	About 3-7days after receipt

Add to Cart

Product Details
Company Profile

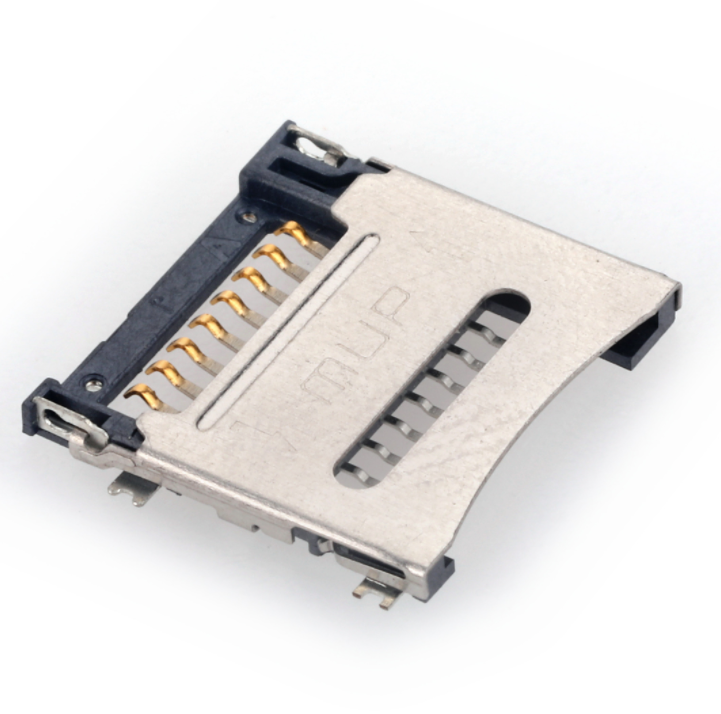

Short PIP Panel Mount Micro Sd Card Socket For Wifi Router

MUP-M617-2 High Quality PIP Memory card socket short body T-flash card connector for wifi router

MUP-M616 Micro sd card connector

Product Description

T/flash card reader

1) 8 Pin+Switch

2) SMT Type (Without Post)

3) DIM: 15.20L * 14.00W * 1.85H mm

Technical characteristics

1.General characteristics

Dimensions:15.20L*14.00W*1.85H mm

Weight:Approx 0.70g

Contact principle:Friction technology

Operating position:shaft up/down/horizontal

Mounting system:SMT(without post)

Durability:5000 cycles min

2.Mechanical characteristics

Insulation material:Thermoplastic,UL 94V-0

3.Electrical characteristics

Number of contact:8pin

Contact resistance:100MΩ max

Insulation resistance:100 MΩ min

4.Solderability

Wave:not applicable

Vaporphase:215oC,30sec Max

IR reflow:260oC,10sec Max

Manual soldering:not applicable

5.Environmental characteristics

Operating humidity:10% − +95%RH

temperature:-40oC − +85oC

Storage humidity:10% − +95%RH

Thermal shock: -40oC+85oC,5cycles

Damp Heat:40oC,90%RH,500H

Salt-mist:35oC,5%Nacl,48H
