SMT Soldering Mounting 50V Max SD Card Connector For GPS

Ask Lasest Price
Brand Name :	HuaYong
Model Number :	M618
Certification :	CE/ ROHS /QC
Price :	$0.10 - $3.00 / Piece
Payment Terms :	L/C, T/T, MoneyGram
Supply Ability :	20000000PCS/Month
Delivery Time :	About 3-7days after receipt

Add to Cart

Product Details
Company Profile

SMT Soldering Mounting 50V Max SD Card Connector For GPS

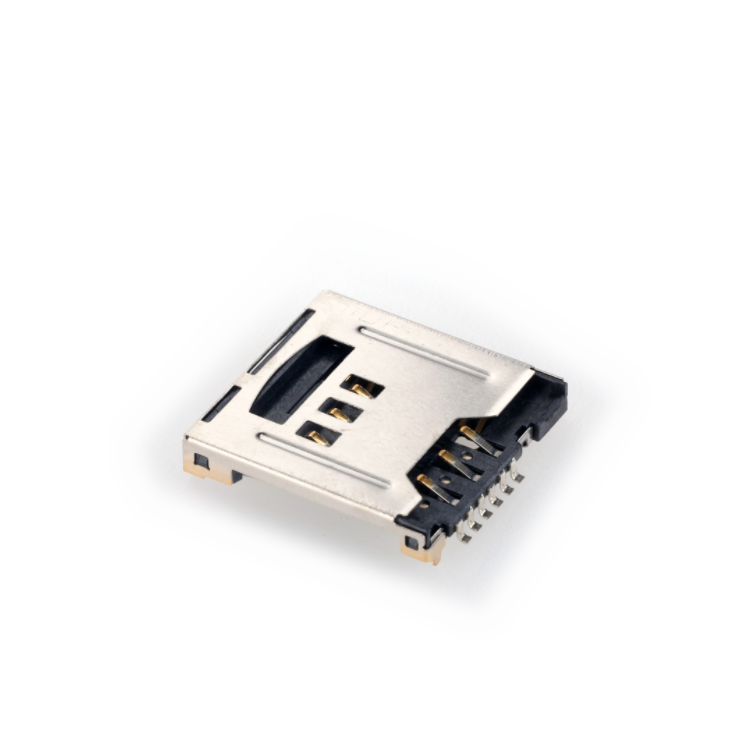

MUP-M618 Push type SIM+TF card connector 2 in 1 SIM+TF card connector for GPS

MUP-M618 SIM+TF card connector

Technical characteristics

1.General characteristics

Dimensions: 17.40L*16.50W*2.70H mm

Weight:Approx: 1.20±0.2g

Contact principle: Friction technology

Operating position: shaft up/down/horizontal

Mounting system: SMT(without post)

Durability: 5000 cycles min

2.Mechanical characteristics

Insulation material: Thermoplastic,UL 94V-0

3.Electrical characteristics

Number of contact: 8pin SIM+8Pin TF

Contact resistance: 50MΩ typical,100MΩ max

Insulation resistance: >1000 MΩ/500V DC

4.Solderability

Wave: not applicable

Vaporphase: 215oC,30sec Max

IR reflow: 260oC,10sec Max

Manual soldering: 360oC,3sec Max

5.Environmental characteristics

Operating temperature: -25oC − +70oC

Operating humidity: 10% − +95%RH

temperature: -40oC − +85oC

Storage humidity: 10% − +95%RH

Thermal shock: -40oC+85oC,5cycles

Damp Heat: 40oC,90%RH,500H

Salt-mist: 35oC,5%Nacl,48H

Hi, Dear friend, the price we set is for reference, the accurate price is based on your specific requirements, so please don't leave because the price directly.if you have any requirements, contact with us, the product you need and best price you want is waiting for you.

ABOUT HUAYONG

Dongguan Huayong Precision Mould Co., Ltd. was established in 2013. Our company is a professional manufacturer of precision molds and precision parts processing. The company has introduced advanced mold processing equipment and testing equipment from Japan, and has a professional team of technical personnel. Effective management ensures the quality of mold parts and professional services.
Since its establishment, the company has won the trust of customers with stable quality and professional technical services. Always put customer needs first, continue to improve, and work hard for better customers.

HUAYONG Advantage:

1.Fast action: We will reply your inquiry at first time.

2.Professional service: From inquiry ->make sample ->start order -> inspecation->delivery

3.Good quality: We have own professional quality control team, make sure the order quality

is completely good before shiping.Let client never worry about quality.

4.Competitive price: We can't say our price is lowest,but we can say our price is what you need,we are
factory price, base on our support, you will get more!

5.Fast shipment: We have fast shipment ,keep the goods reach your side fast and safety.
